| Hỗ Trợ Vi Xử Lý | - Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- Support Socket AM4
|
| Chipset | AMD B550 Chipset |
| Hỗ Trợ Bộ Nhớ | - 4x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
|
| Chân Cắm Mở Rộng | - 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
- 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode
- 2x PCIe 3.0 x1 slots
|
| Multi-GPU | Supports 2-Way AMD CrossFire™ Technology |
| Cổng Xuất Hình Ảnh | - 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Support HDCP 1.4 & 2.3 - 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
- Maximum shared memory of 16 GB
|
| Hỗ Trợ Ổ Cứng | AMD B550 Chipset 6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices |
| RAID | AMD B550 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio | Realtek® ALC1220P Codec 7.1-Channel High Definition Audio
Supports S/PDIF output |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth® | AMD® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5. |
| Internal connectors | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper |

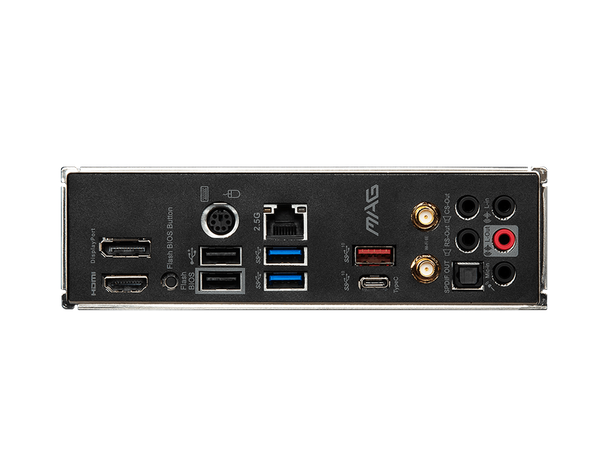

| Back panel ports | DisplayPort 1.4
PS/2 Combo Port
2.5G LAN Port
USB 3.2 Gen 2 10Gbps Type-A
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI 2.1 Port
Flash BIOS Button
USB 2.0 Port
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-C
Optical S/PDIF OUT |
| Kích Thước | Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Mounting | 8 mounting holes |
| Hệ Điều Hành Hỗ Trợ | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Bảo Hành | 3 Years |
