PROCESSOR
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
- Processor socket LGA1700
- Please go to msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® B660 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB 1
- Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333+ MHz
- 1DPC 2R Max speed up to 4000+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 3600+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 2x PCIe x16 slots
- PCI_E1 slot (From CPU)
- Supports PCIe 5.0 x16
- PCI_E3 slot (From B660 Chipset)
- Supports PCIe 3.0 x4
- PCI_E1 slot (From CPU)
- 1x PCIe 3.0 x1 slot
MULTI-GPU
- Supports AMD CrossFire™ Technology
ONBOARD GRAPHICS
- 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
STORAGE
- 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1
- 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
- 2x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Supports PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (From B660 Chipset) 1
- Supports PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel® Optane™ Memory
- M2_1 slot (From CPU)
- SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1
- SATA_A & SATA_B do not support RAID function.
USB
Intel® B660 Chipset
- 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
- 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
- 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
- 4x USB 2.0 ports on the back panel
USB Hub-GL3590
- 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G
- 4x USB 2.0 ports available through internal connectors
AUDIO
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
- 1x Realtek® 8125BG 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH®
Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.32, FIPS, FISMA
- Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
- Bluetooth 5.3 will be ready in Windows 10 version 21H1 and Windows 11.
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C connector
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 2x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector
- 1x TBT connector (supports RTD3)
- 1x Tuning Controller connector
LED FEATURE
- 4x EZ Debug LED
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors

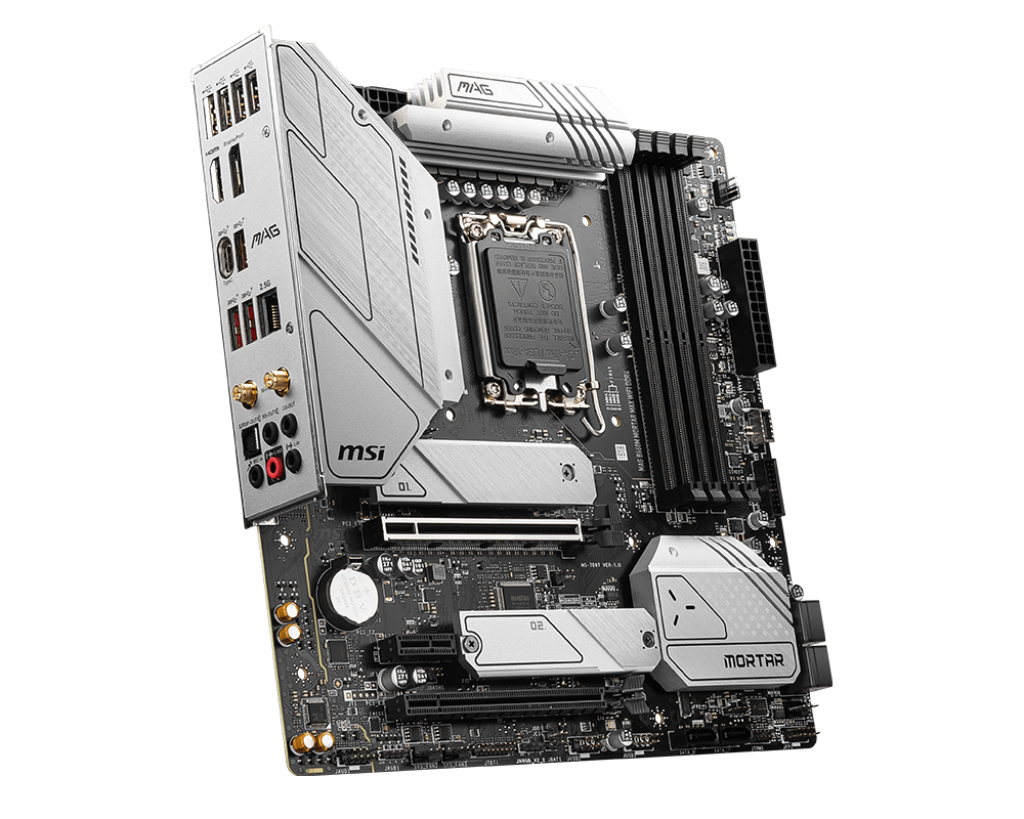

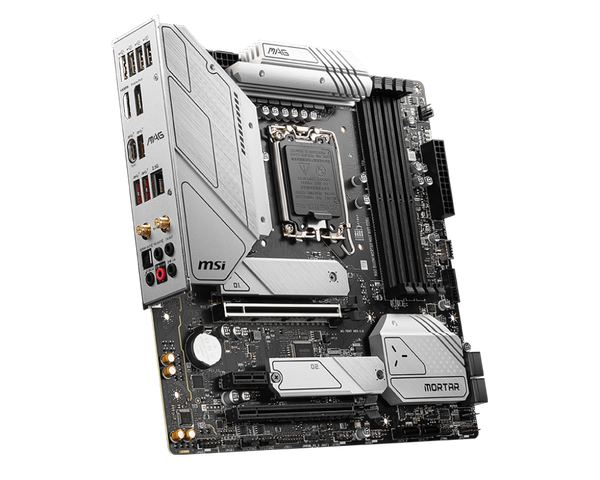

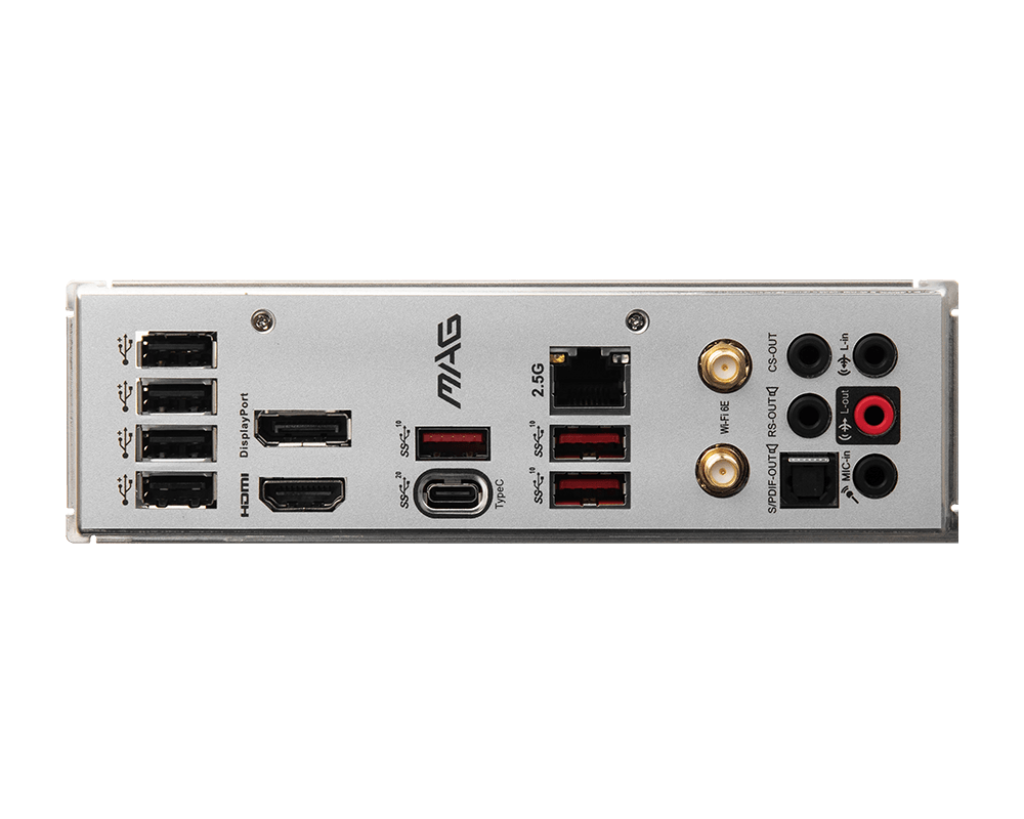

BACK PANEL PORTS
- USB 2.0 Port
- DisplayPort 1.4
- USB 3.2 Gen 2 10Gbps Type-A
- 2.5G LAN Port
- Wi-Fi / Bluetooth Antenna
- HD Audio Connectors
- HDMI™ 2.1 Port
- USB 3.2 Gen 2x2 20Gbps Type-C
- Optical S/PDIF OUT
DIMENSIONS
- Micro-ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BOX CONTENT
-
- MSI® does not guarantee the risks or damages caused by changing the cover.
-
- These pictures are for reference only and may vary without notice.
