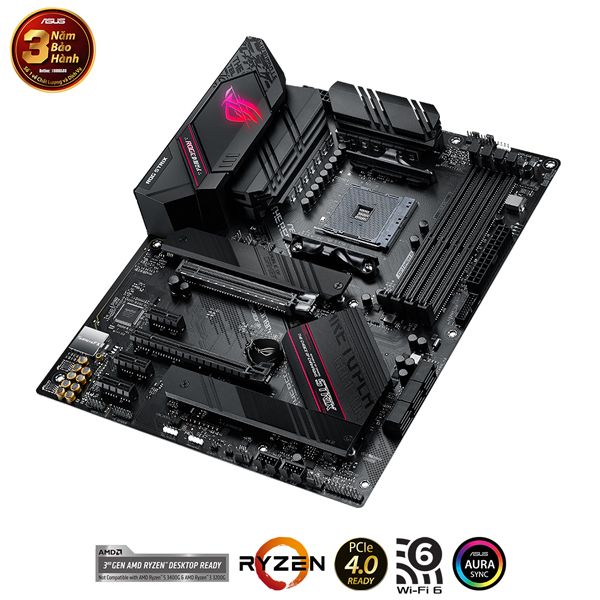

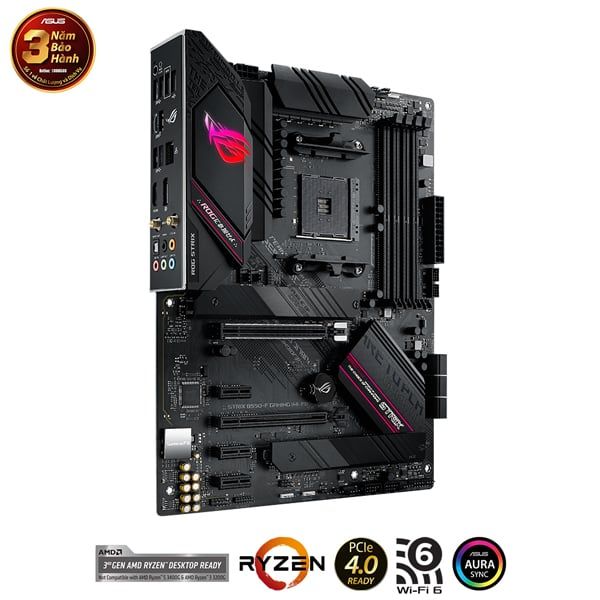

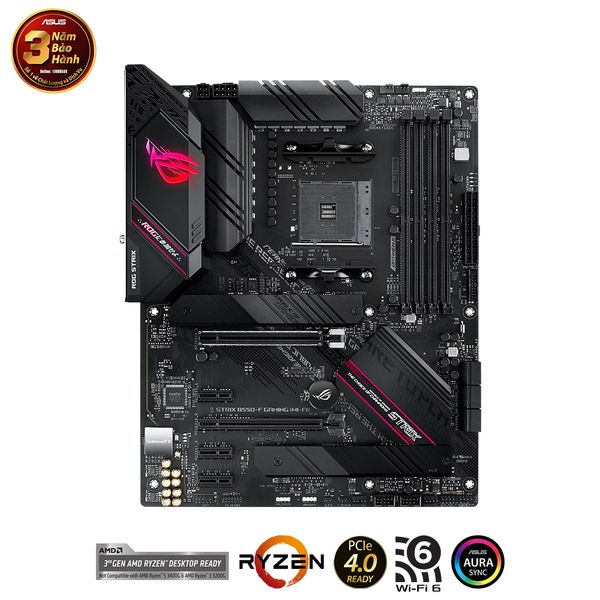

MAIN ASUS B550 - F ROG STRIX GAMING WI-FI (AMD)

* THÔNG SỐ KỸ THUẬT

• CPU
  AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
  * Refer to www.asus.com for CPU support list
• Chipset
  AMD B550
• Memory
  3rd Gen AMD Ryzen™ Processors
  4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
  Next Generation AMD Ryzen PRO Processors
  4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory
  Dual Channel Memory Architecture
  OptiMem II
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor
  1 x DisplayPort 1.2
  1 x HDMI 2.1(4K@60HZ)
  *Graphics specifications may vary between CPU types.
• Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  3rd Gen AMD Ryzen™ Processors
  1 x PCIe 4.0 x16 (x16 mode)
  AMD B550 Chipset
  1 x PCIe 3.0 x16 (x4 mode) *
  3 x PCIe 3.0 x1
• Storage
  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  3rd Gen AMD Ryzen™ Processors :
  1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  AMD B550 Chipset :
  1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 10
• LAN
  Intel® I225-V 2.5Gb Ethernet
  ASUS LANGuard
• Wireless Data Network
  Intel® Wi-Fi 6 AX200
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  Supports dual band frequency 2.4/5 GHz
  Supports channel bandwidth: HT20/HT40/HT80/HT160
• Bluetooth
  Bluetooth v5.1*
  *BT 5.1 function will be ready in Windows 10 build 19041 or later.
• Audio
  ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  - Dual OP Amplifiers
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - Supports up to 32-Bit/192kHz playback *
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - Optical S/PDIF in port(s) at back panel
  - Audio Shielding
  - Premium Japanese audio capacitors
  - Audio Cover
  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports
  Rear USB Port ( Total 8 )
  2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®)
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)
• Software Features
  ROG Exclusive Software
  - RAMCache III
  - ROG CPU-Z
  - GameFirst VI
  - Sonic Studio III + Sonic Studio Virtual Mixer
  - Sonic Radar III
  - DTS® Sound Unbound
  - Overwolf
  - Anti-virus software
  ASUS Exclusive Software Features
  Armoury Crate
  - Aura Creator
  - Aura Sync
  - AI Noise Cancelling Microphone
  AI Suite 3:
  - PPSU
  EPU
  DIGI+ VRM
  Fan Xpert 4
  TurboV EVO
  - EZ update
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

• ASUS Special Features
  Aura Sync
  - Standard RGB header(s)
  - Addressable Gen 2 RGB header(s)
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum M.2 heatsink
  ASUS EZ DIY
  -BIOS FlashBack™ button
  -BIOS FlashBack™ LED
  -Clear CMOS header
  -ProCool
  -Pre-mounted I/O shield
  - SafeSlot

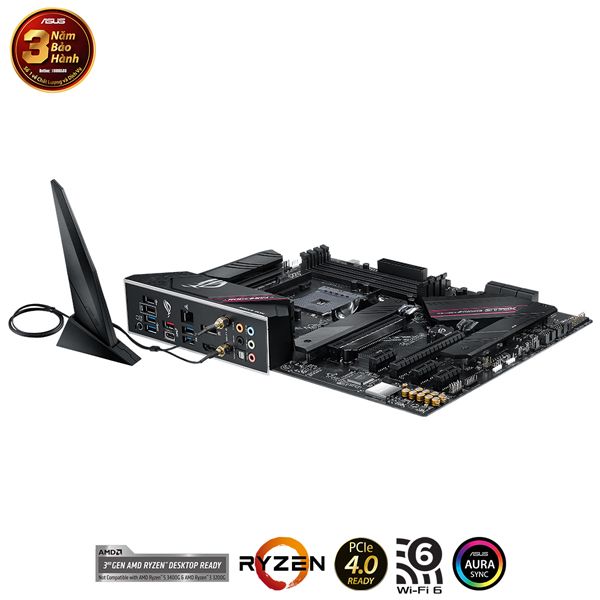

• Back I/O Ports
  1 x Intel® I225-V 2.5Gb Ethernet
  1 x DisplayPort
  1 x HDMI
  2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)
  4 x USB 3.2 Gen 1
  2 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  1 x BIOS FlashBack^™ Button(s)
  ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
• Internal I/O Ports
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  3 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x AAFP connector
  2 x Aura RGB Strip Header(s)
  1 x Addressable Gen 2 header(s)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s connector(s)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x System panel(s)
  1 x Thermal sensor connector(s)
  1 x Clear CMOS jumper(s)

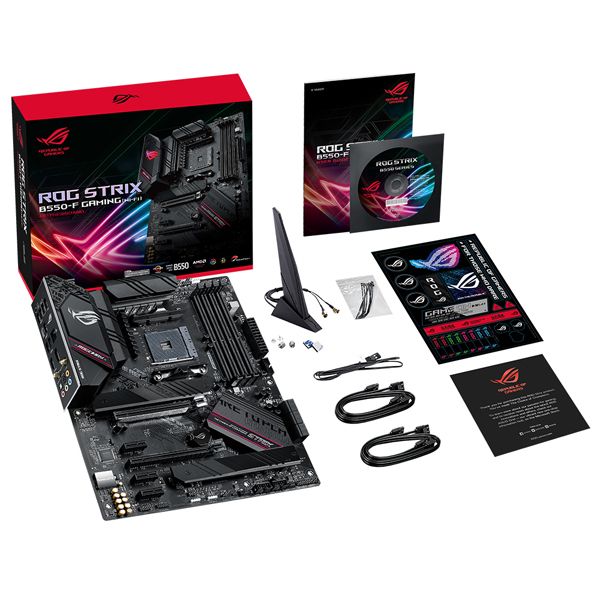

• Accessories
  User's manual
  4 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x ROG Strix stickers
  1 x Cable ties pack(s)
  1 x Extension cable for Addressable LED
  1 x ROG Thank you card
  1 x Wi-Fi moving antenna
  1 x M.2 SSD screw package(s)
  1 x M.2 Rubber Package(s)
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  WOL by PME, PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3
  * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.
