THÔNG SỐ KỸ THUẬT
| CPU | Supports 14th 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) |
|---|---|
| Chipset | Intel® B760 |
| Bộ nhớ RAM | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC un-buffered memory up to 7200+(OC) 1DPC 1R Up to 7200+ MHz (OC) 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC) 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC) 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC) 3600 MHz Natively. Max. capacity of system memory: 192GB Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Card đồ họa | Intel® Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Card âm thanh | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game Browser and Streaming Modes User Customized Priority Control |
| LAN không dây | 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 160MHz with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO Supports Killer LAN Software |
| Khe cắm | CPU:.- 1 x PCIe 5.0 x16 Slot (PCIE1) supports x16 mode Chipset - 1 x PCIe 3.0 x16 Slot (PCIE2) supports x4 mode - 1 x M.2 Socket (Key E) -supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
| Lưu trữ | CPU: - 1 x Hyper M.2 Socket (M2_1 Key M) supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) - 1 x Hyper M.2 Socket (M2_3 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0 - RAID 1 - RAID 5 and RAID 10 for SATA storage devices |
| USB | Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear 2 Front) - 6 x USB 2.0 (2 Rear 4 Front) |
| Cổng kết nối | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |

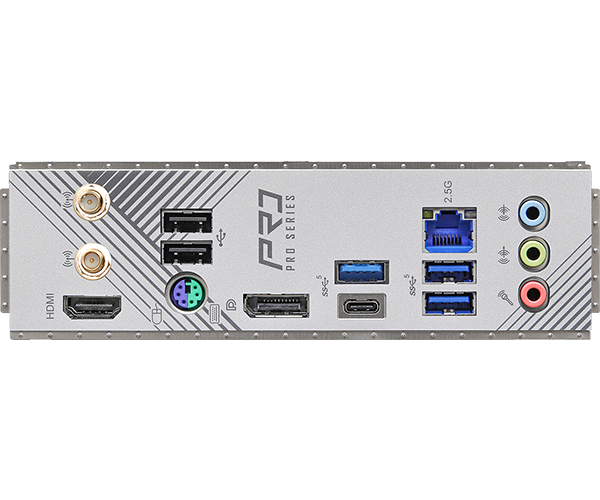

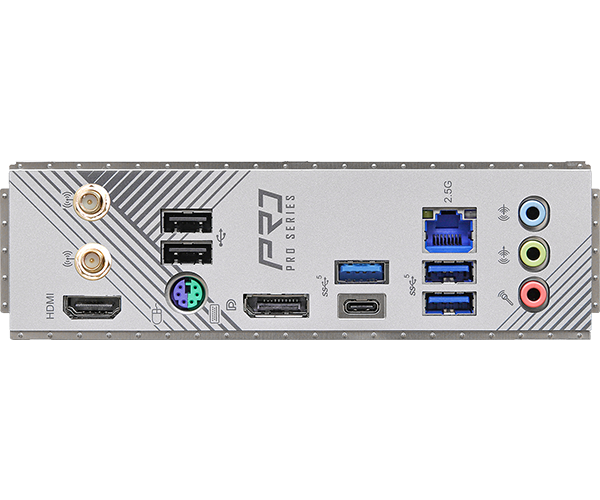

| Input/Output phía sau | - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x PS/2 Mouse/Keyboard Port |
| Chuẩn vỏ máy | Micro ATX Form Factor: 9.6-in x 9.6-in 24.4 cm x 24.4 cm |
| Bảo hành | 36 tháng |
