Printing | ||
Printing method | Direct thermal | |
Print width | 76mm | |
Column capacity | 384 dots/line (58mm) 576 dots/line 512 dots/line (80mm) | |
Printing speed | 200mm/s | |

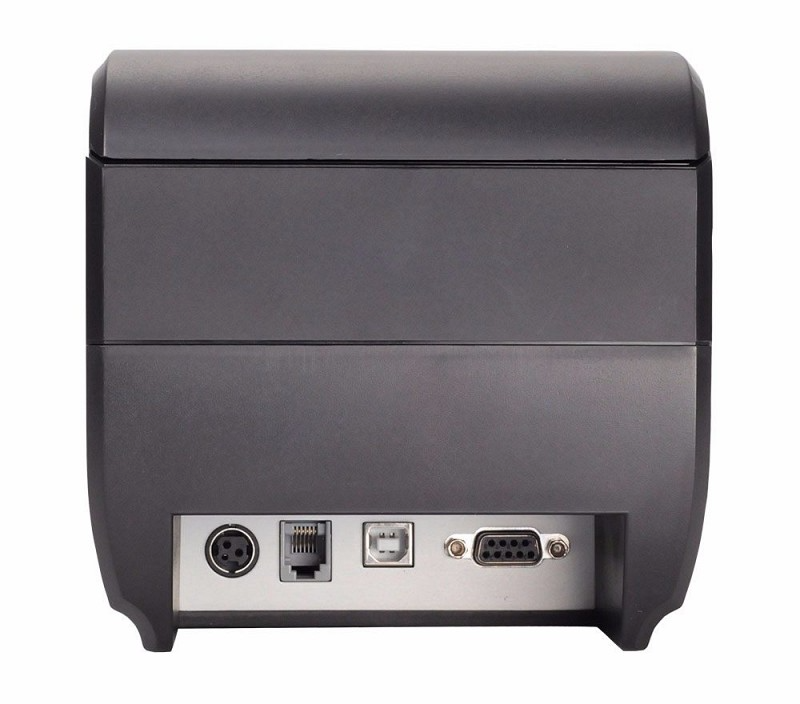

Interface | Serial+USB /Lan | |
Printing paper | 79.5±0.5mm×φ80mm | |
Line spacing | 3.75mm (Adjustable by commands) | |
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns | |
Character size | ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Simplified /traditional Chinese: 3.0×3.0mm(24×24 dots) | |
Cutter | ||
Auto cutter | Partial | |
Barcode Character | ||
Extension character sheet | PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251) | |
Barcode types | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 | |
Buffer | ||
Input buffer | 64k bytes | |
NV Flash | 256k bytes | |
Power | ||
Power adaptor | Input:AC 110V/220V, 50~60Hz | |
Power source | Output:DC 24V/2.5A | |
Cash drawer output | DC 24V/1A | |
Physical characteristics | ||
Weight | 1.45KG | |
Dimensions | 194.5×145×147mm ( D×W×H) | |
Environmental Requirements | ||
Work environment | Temperature (0~45) humidity(10~80%) | |
Storage environment | Temperature(-10~60℃) humidity(10~80%) | |
Reliability | ||
Cutter life | 1million cuts | |
Printer head life | 100KM |
