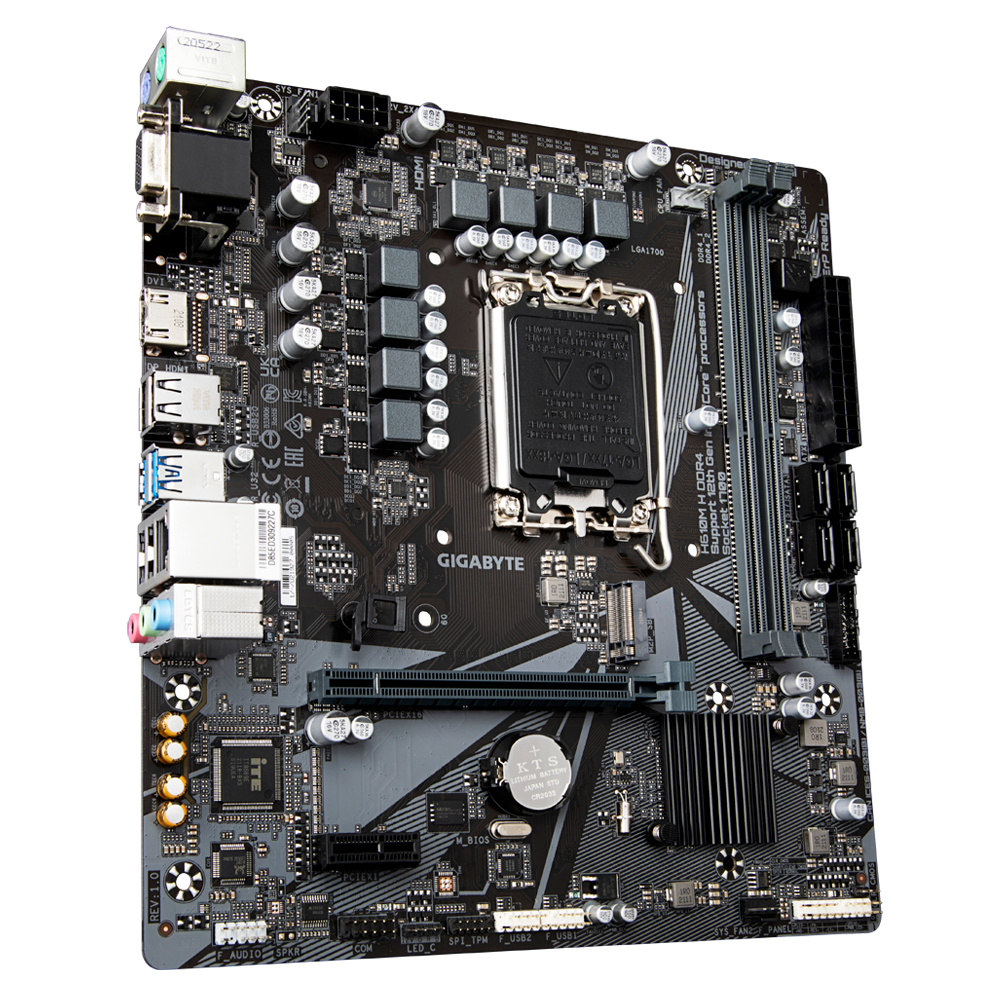

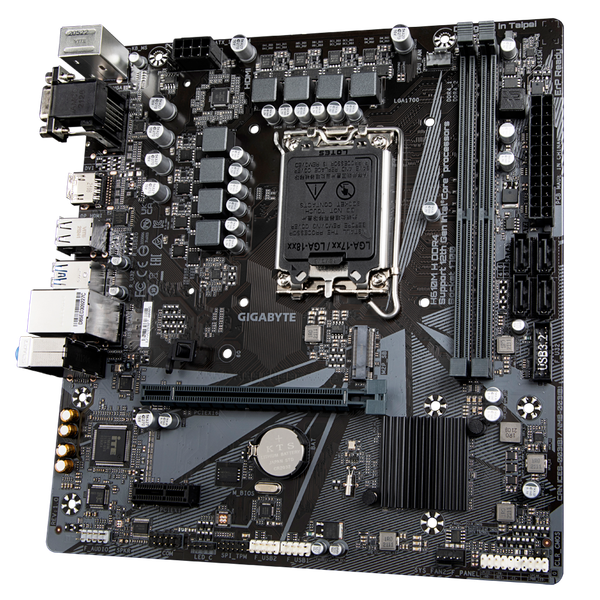

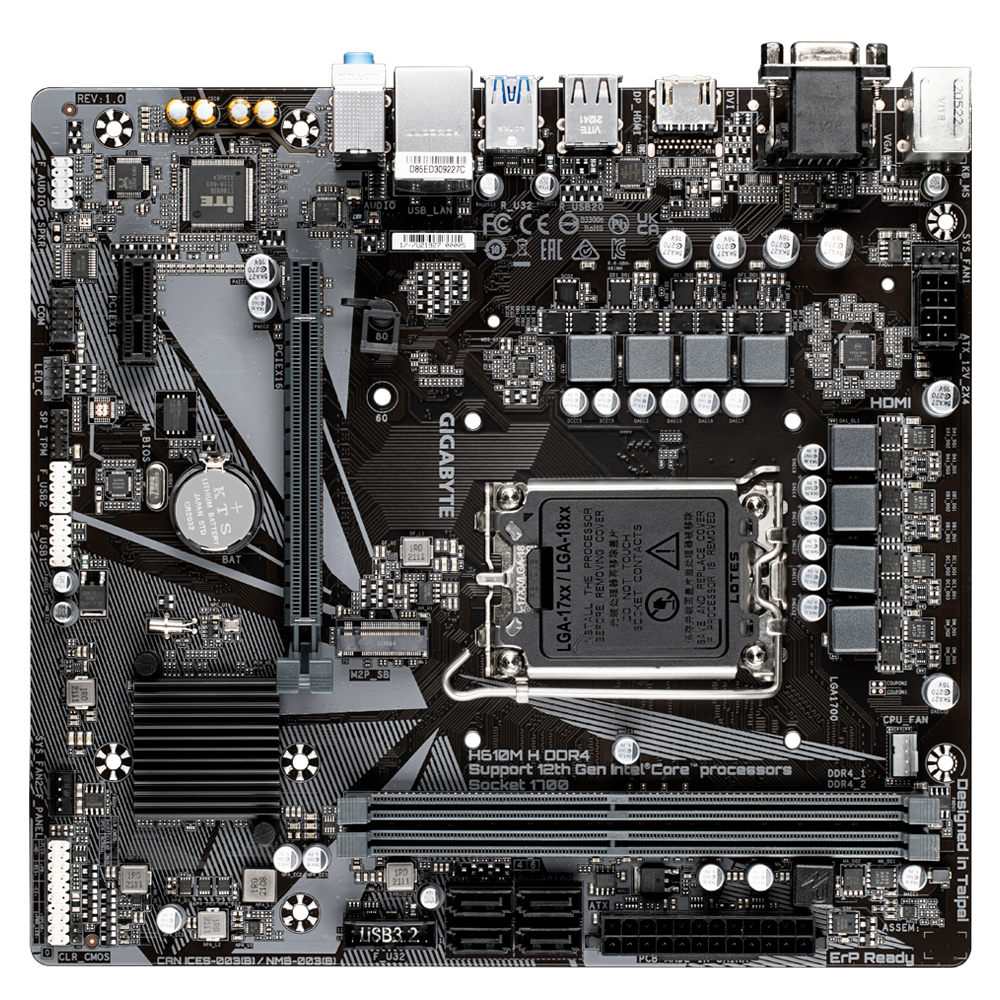

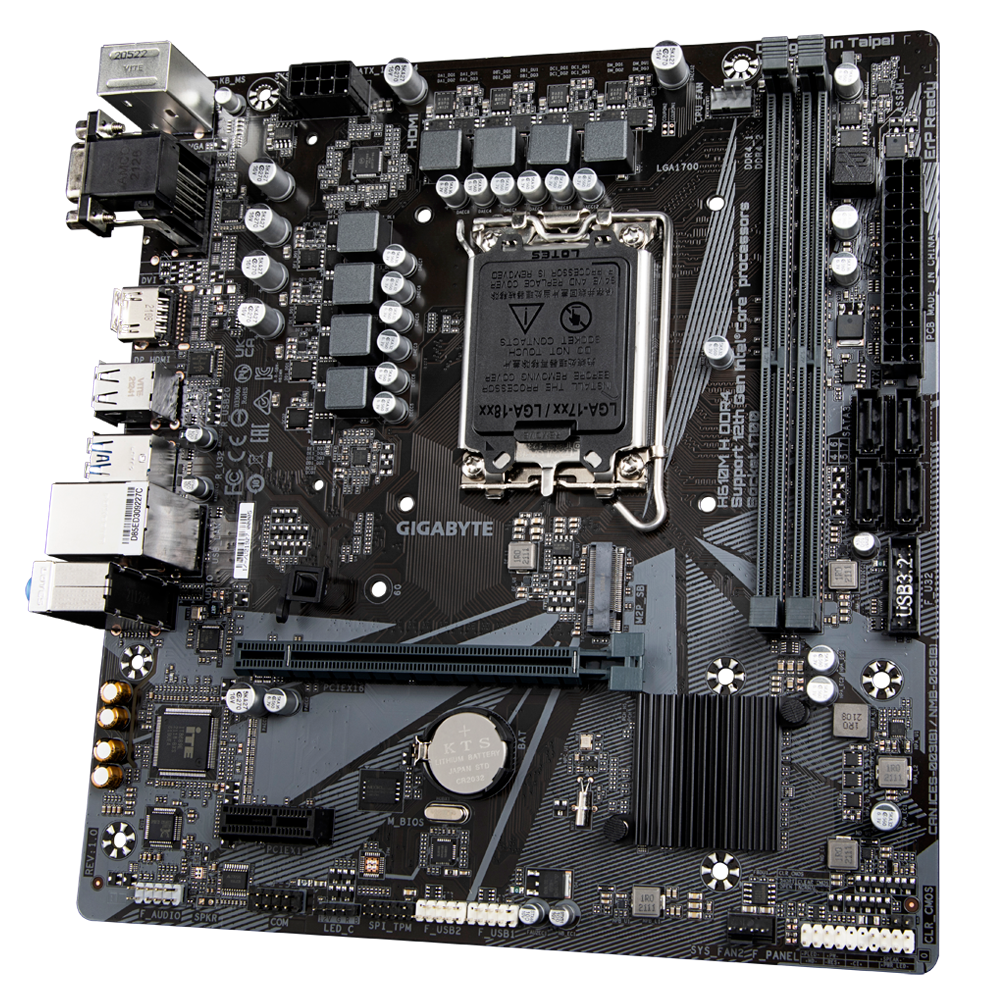

Main Gigabyte H610M H V2 DDR4

CPU

1. LGA1700 socket: Support for 13th Generation Intel^® Core™ Processors and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
2. L3 cache varies with CPU

Chipset

1. Intel^® H610 Express Chipset

Bộ nhớ

1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Card đồ họa tích hợp

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports

Âm thanh

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

1. Intel^® GbE LAN chip (1 Gbps/100 Mbps)

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
2. 1 x PCI Express x1 slot
   (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Giao diện lưu trữ

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

USB

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 4 x USB 2.0/1.1 ports on the back panel

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

Kết nối I/O bên trong

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 4 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 2 x system fan headers
7. 1 x RGB LED strip header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

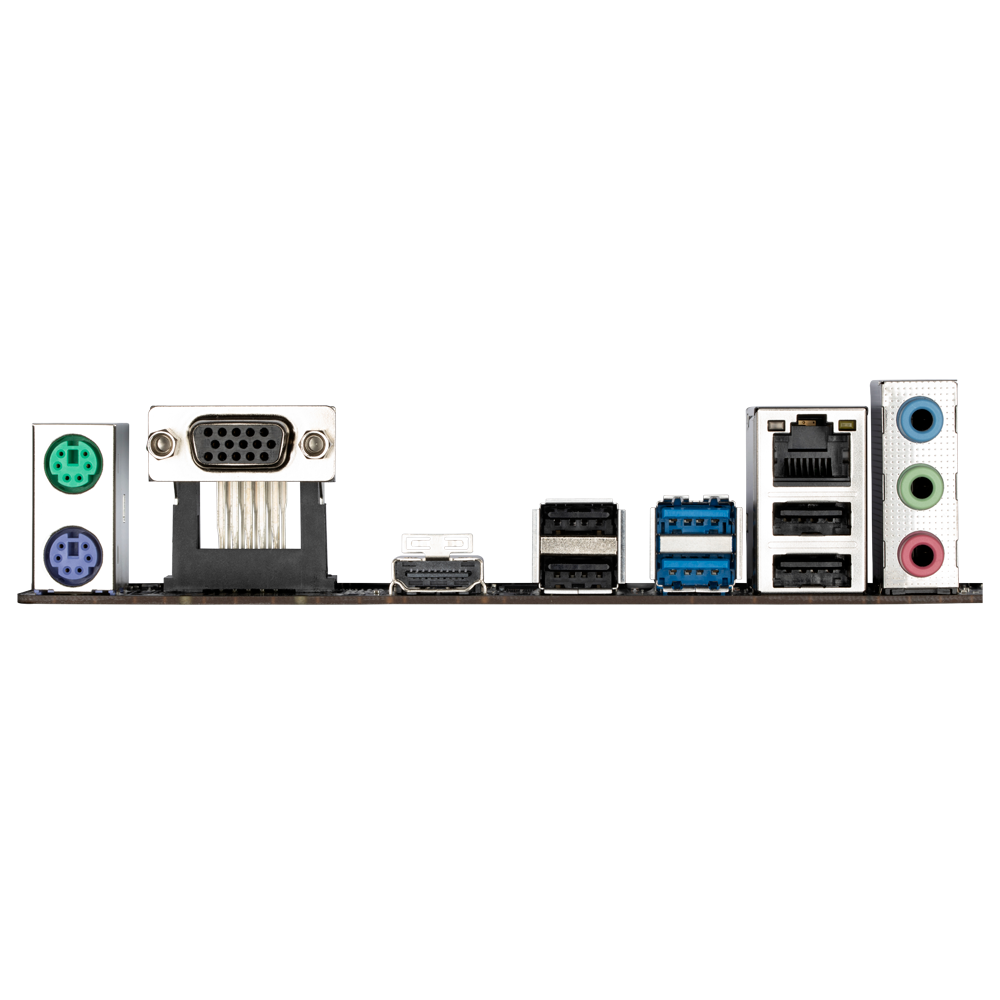

Kết nối bảng phía sau

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI 2.0 port
5. 2 x USB 3.2 Gen 1 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks

Điều khiển I/O

1. iTE^® I/O Controller Chip

Theo dõi phần cứng

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

Gói phần mềm

1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software

Hệ điều hành

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Hệ số khuôn

1. Micro ATX Form Factor; 23.0cm x 21.5cm
