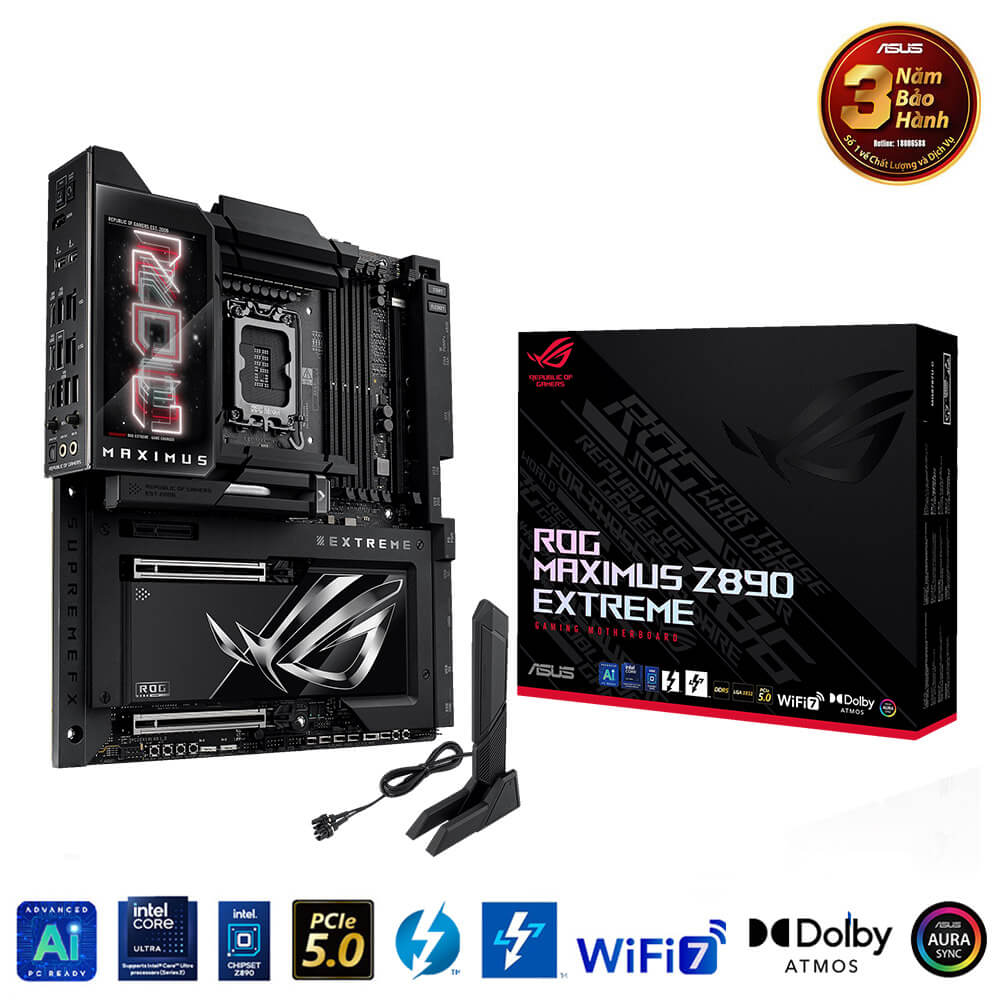

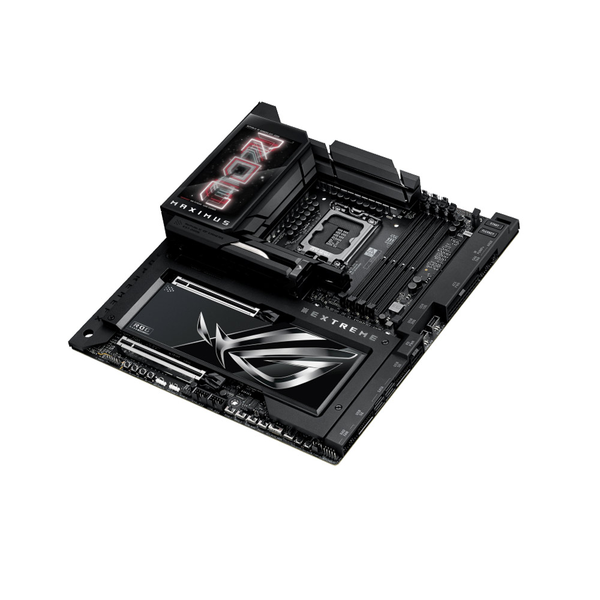

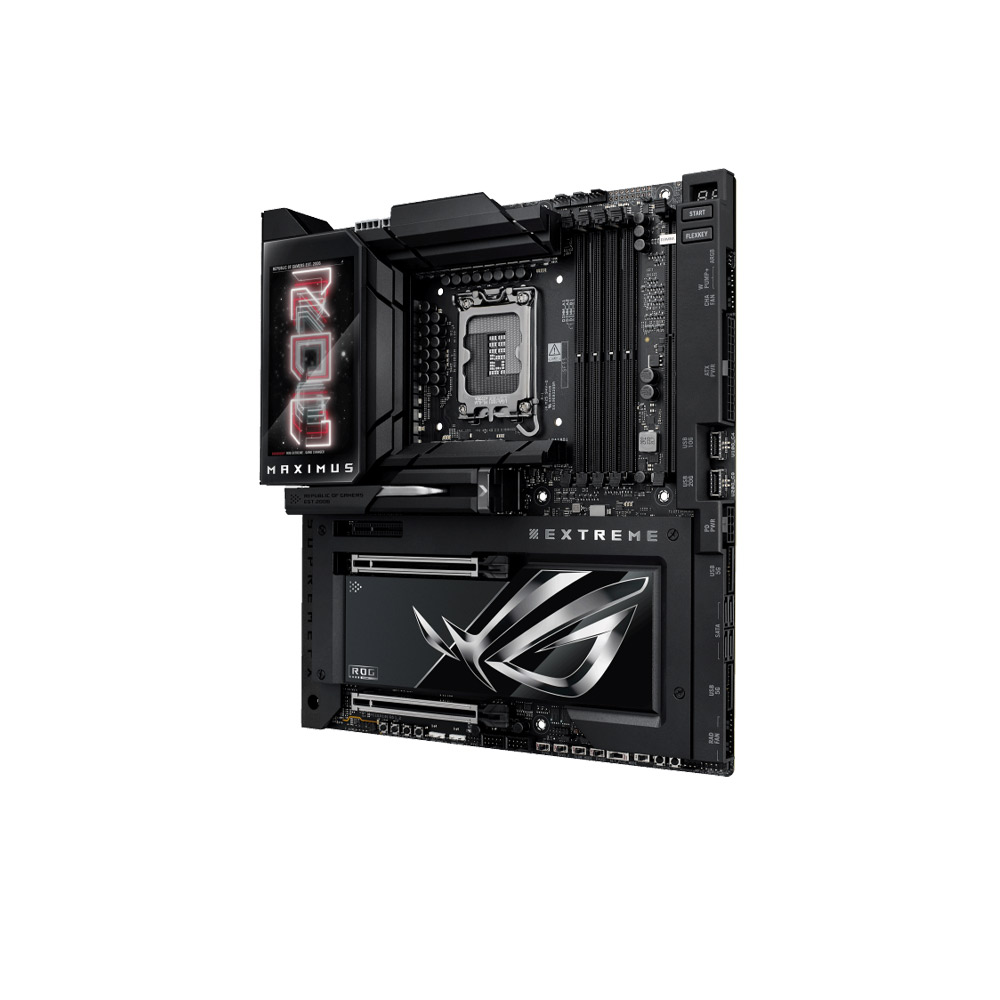

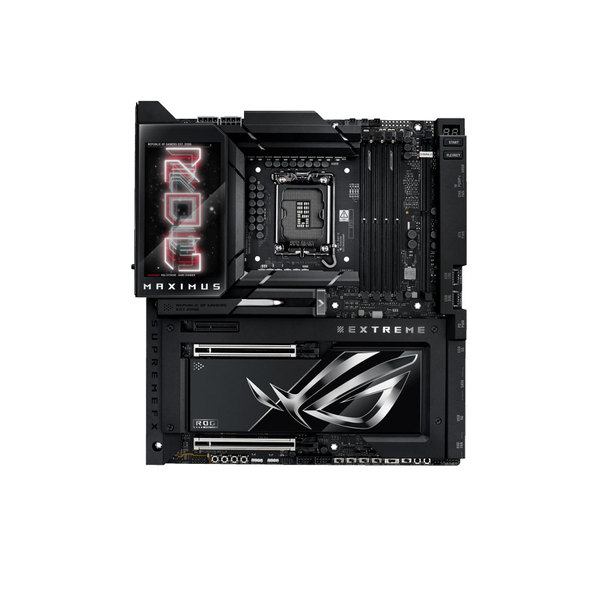

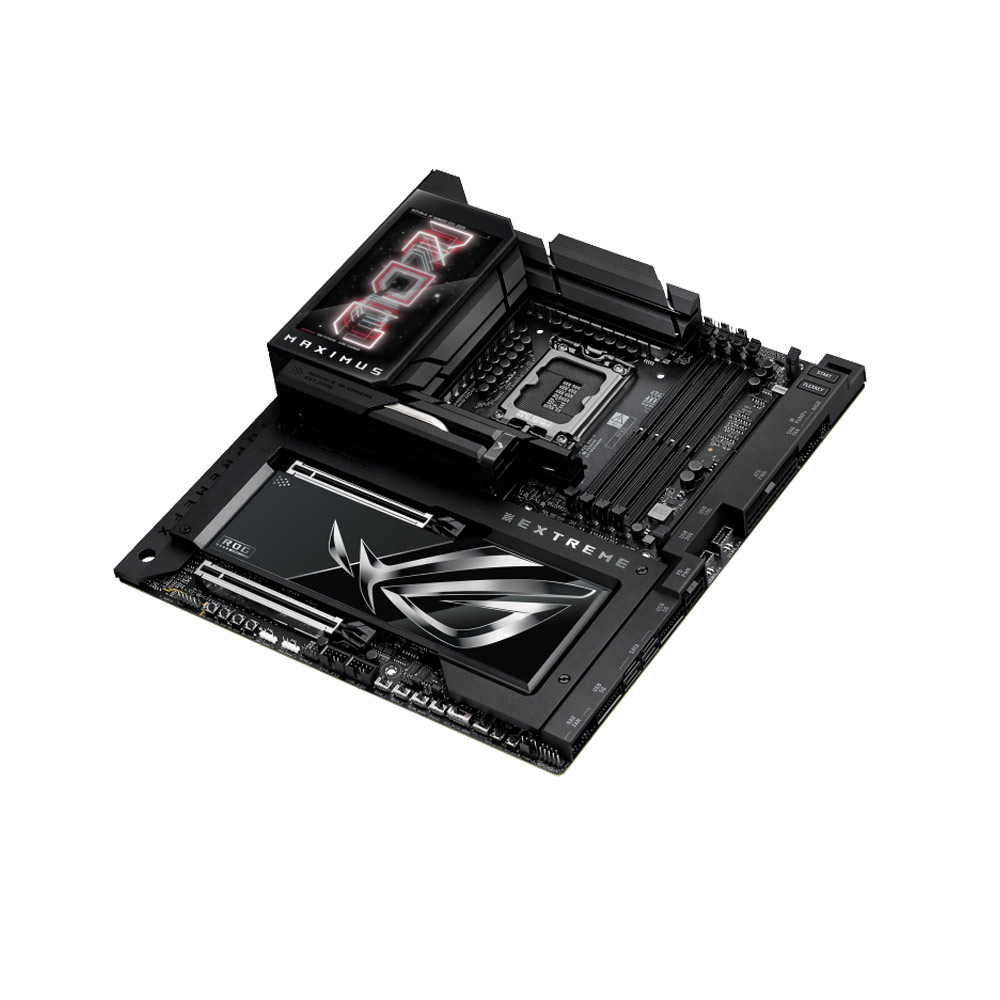

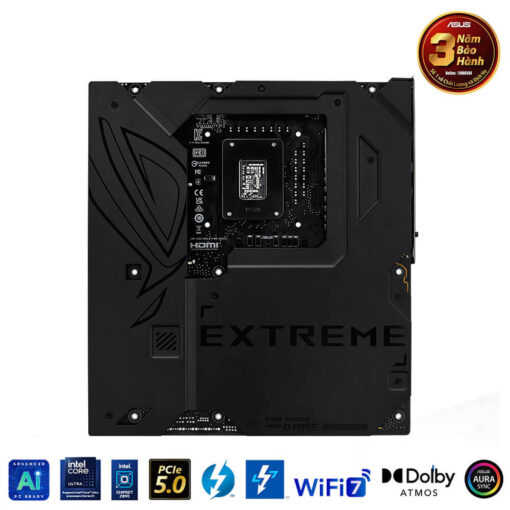

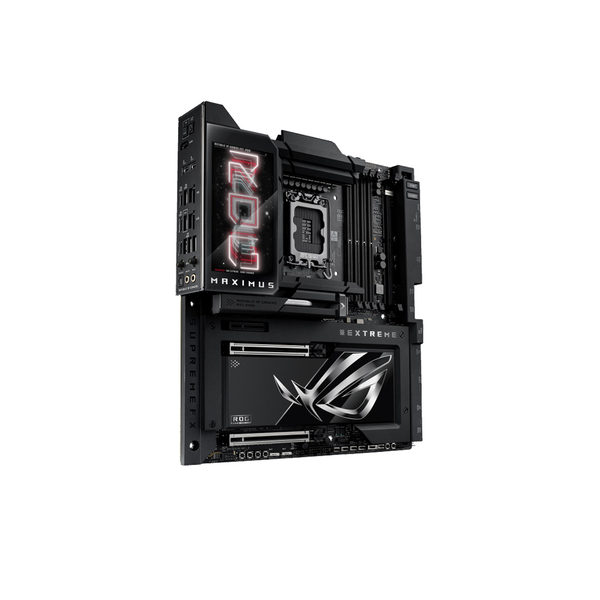

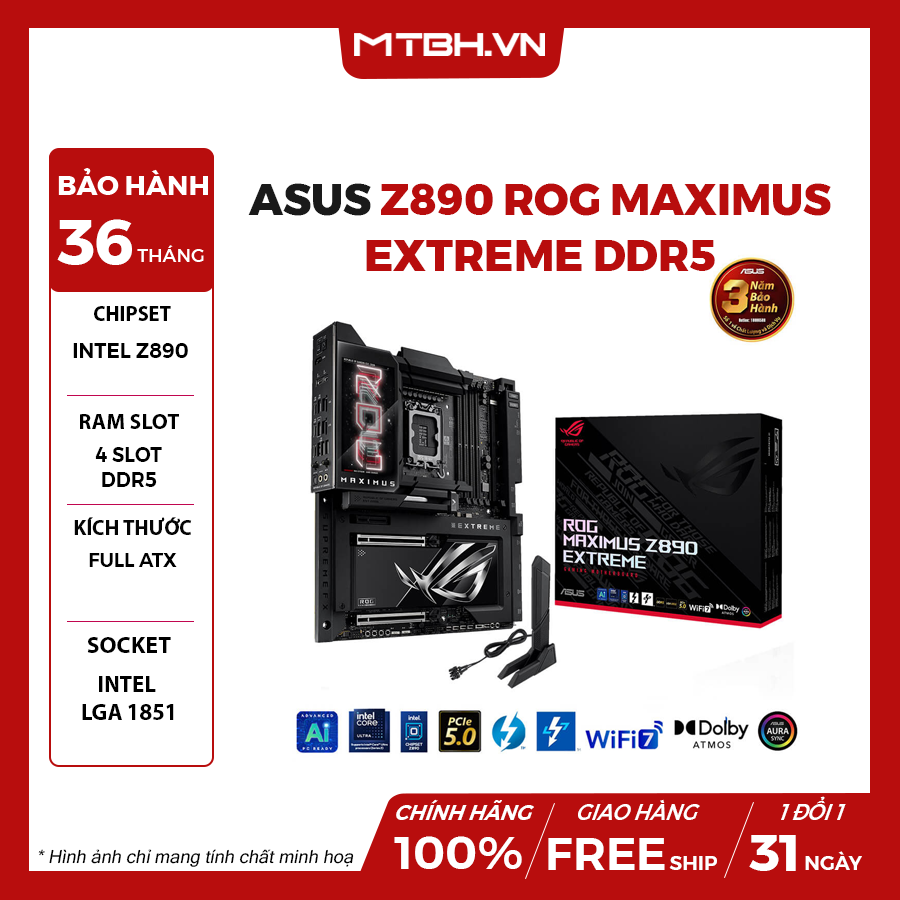

Main ASUS Z890 ROG MAXIMUS EXTREME DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

RAM hỗ trợ

4 x DIMM slots, max. 192GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)

Intel Z890 Chipset
1 x PCIe 4.0x4 slot

Ổ cứng hỗ trợ

Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Support Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)

Intel Z890 Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

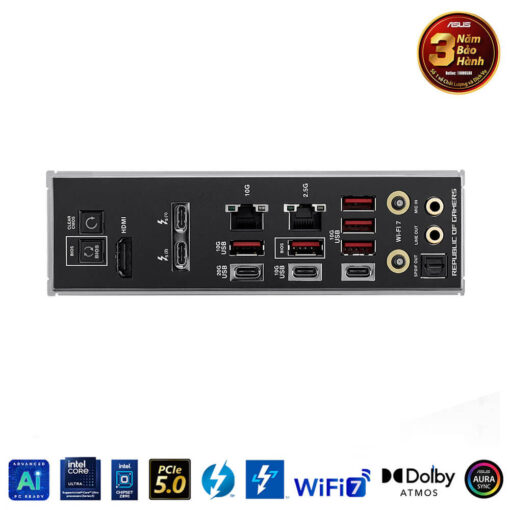

Cổng kết nối (Back Panel)

2 x Thunderbolt 5 USB Type-C ports
1 x USB 20Gbps port (1 x USB Type-C)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button

LAN / Wireless

LAN

1 x Intel 2.5Gb Ethernet

1 x Marvell AQtion 10Gb Ethernet

Wireless

Intel Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth v5.4

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
