THÔNG SỐ KỸ THUẬT

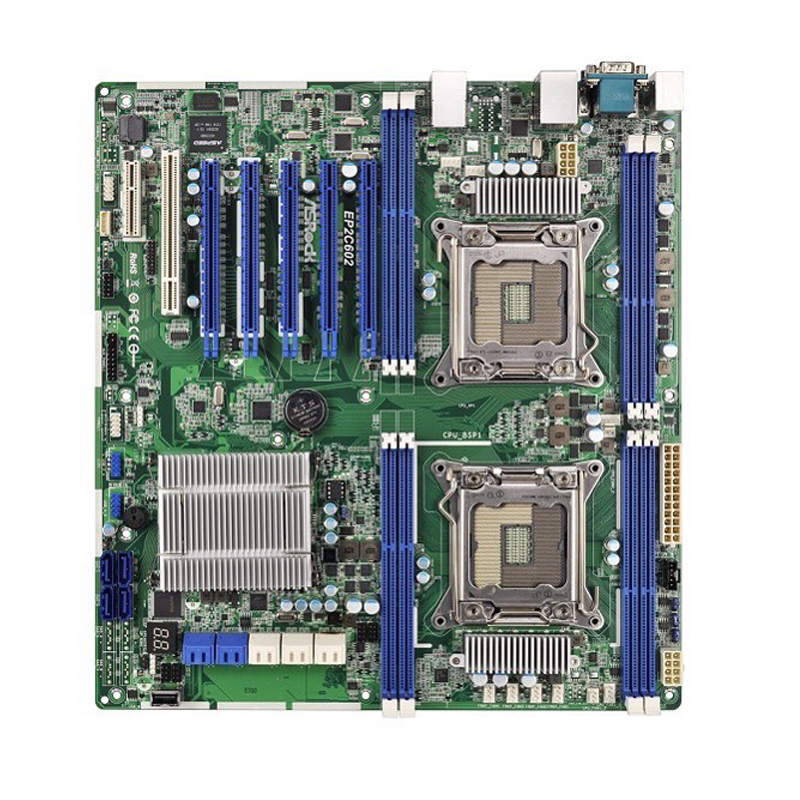

Bo mạch chủ - MAIN SERVER WORKSTATION ASROCK EP2C602 (DUAL CPU) đến từ thương hiệu main ASROCK
| Form Factor | - SSI EEB |
| Kích thước | - 12'' x 13'' (30.5 cm x 33 cm) |
| Thông tin hệ thống | |
| CPU | - Intel® Xeon® processor E5-1600/2600/4600 & v2 series - Supports Hyper-Threading Technology Intel Xeon E5-1600 hỗ trợ trên 1 socket |
| Socket | - Dual Socket R (LGA2011) |
| Power Design | - 6 +1 Power Phase Design |
| Chipset | - Intel® C602 |
| Bộ nhớ hỗ trợ | |
| Dung lượng hỗ trợ | - 8x 240-pin DDR3 DIMM slots - Support up to 256GB DDR3 R/LR DIMM ; 64GB ECC/non-ECC unbuffered UDIMM |
| Loại Ram | - Quad Channel DDR3 - Hỗ trợ DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM |
| Voltage | - 1.5V, 1.35V |
| Khe cắm mở rộng | |
| PCIe 3.0 x 16 | - 5 slots - 3 x PCIE3/PCIE6/PCIE7 : x16 mode - 1 x PCIE4: x8/x0 mode - 1 x PCIE5: x16/x8 mode |
| PCIe 3.0 x 4 | - 1 slot |
| PCI | - 1 slot |
| Công lưu trữ | |
| SATA Controller | - Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage 3.0, NCQ, AHCI and "Hot Plug" functions |
| Additional Storage Controller | - Marvell SE9230: 4 x SATA3 6.0 Gb/s, hỗ trợ RAID 0, 1, 10, NCQ, AHCI and "Hot Plug" functions |
| Ethernet | |
| Chuẩn LAN | - Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller | - 2 x Intel® 82574L - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function* - Supports PXE * Intel® 82574L discontinues official driver support for Microsoft® Windows® 2012 R2 (x64) |
| Management | |
| BMC Controller | - ASPEED AST2300 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management LAN |
| Features | - Watch Dog - NMI |
Đồ họa | |
| Controller | - ASPEED AST2300 |
| VRAM | - DDR3 16MB |
| Cổng ra | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Cổng I/O phía sau | |
| PS/2 KB/Mouse | - 2 |
| VGA Port | - 1 x D-Sub |
| USB 2.0 Port | - 2 |
| Lan Port | - 2 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 (COM1) |
| Cổng kết nối bên trong | |
| COM Port Header | - 1 (COM2) |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, front LAN LED) |
| TPM Header | - 1 |
| Thermal Sensor Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 8 (8 x 4-pin or 6 x 4-pin, 2 x 3-pin) *CPU fan headers have 3-pin and 4-pin ones. Two types couldn't be used at the same time. |
| ATX Power | - 1 (24-pin) + 2 (8-pin) |
| USB 2.0 Header | - 2 (each support 2 USB 2.0) |
| Type A USB 2.0 Port | - 1 |
| Front Panel | - 1 |
| Speaker | - 1 |
| Dr. Debug with LED | - 1 |
| BIOS hệ thống | |
| Kiểu BIOS | - 64Mb AMI UEFI Legal BIOS |
| Tính năng BIOS | - Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment - ASRock Instant Flash |
| Quản lý phần cứng | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: CPU1/2, DRAM1/2, VTT1/2, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB |
| Hệ điều hành hỗ trợ | |
| Hệ điều hành | Microsoft® Windows® - Server 2008 R2 (x64) - Server 2012 (x64) - Server 2012 R2 (x64) Linux - RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) - CentOS 5.5 / 6.4 (x32 and x64) - SUSE Enterprise Linux Server 11 SP1 (x32 and x64) - FreeBSD 9.1 (x32/x64) - Fedora core 18 (x64) - Ubuntu 12.04/12.10 (x64) Virtual - VMWare® ESXi 5.1 (Marvell SE9230 và Marvell SE9172 không có driver hỗ trợ VMWare) |
| Phụ kiện đi kèm | |
| Phụ kiện | Hộp, sách, đĩa Driver |
| Bảo hành | 36 tháng |
