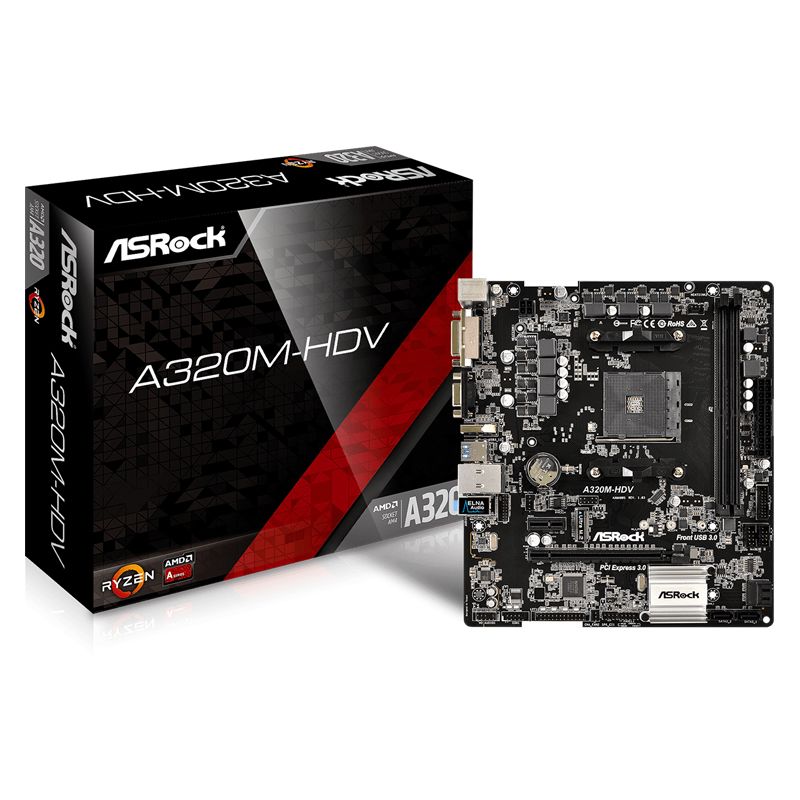

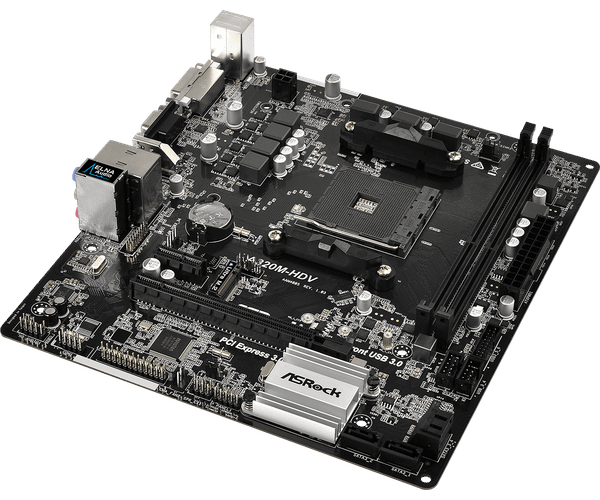

MAIN ASROCK A320M-HDV NEW

Hãng sản xuất

ASRock

Chủng loại

A320M-HDV

CPU hỗ trợ

Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)

Chipset

AMD Promontory A320

Bộ nhớ trong

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots

VGA onboard

- Integrated AMD Radeon™ R-Series Graphics in A-series APU*
- DirectX 12, Pixel Shader 5.0
- Max. shared memory 2GB

Card mạng

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-LAN

Âm thanh

7.1 CH HD Audio (Realtek ALC887 Audio Codec

Khe mở rộng

AMD Ryzen series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD 7^th A-Series APUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*

- 1 x PCI Express 2.0 x1 Slot

Chuẩn lưu trữ

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)*

Cổng giao tiếp trước và sau

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Công nghệ tích hợp

Kích thước

- Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm

Phụ kiện đi kèm

(Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main ….)

Bảo hành

36 tháng
