Compatibility | Intel LGA2066/2011/1700/1200/115X | |
AMD AM5/AM4 | ||
TDP | 350W | |
Radiator Dimension | 396×120×27mm | |
Radiator Material | Aluminum | |
Tube Material | Premium Sleeved Tubing | |
Tube Length | 465mm | |

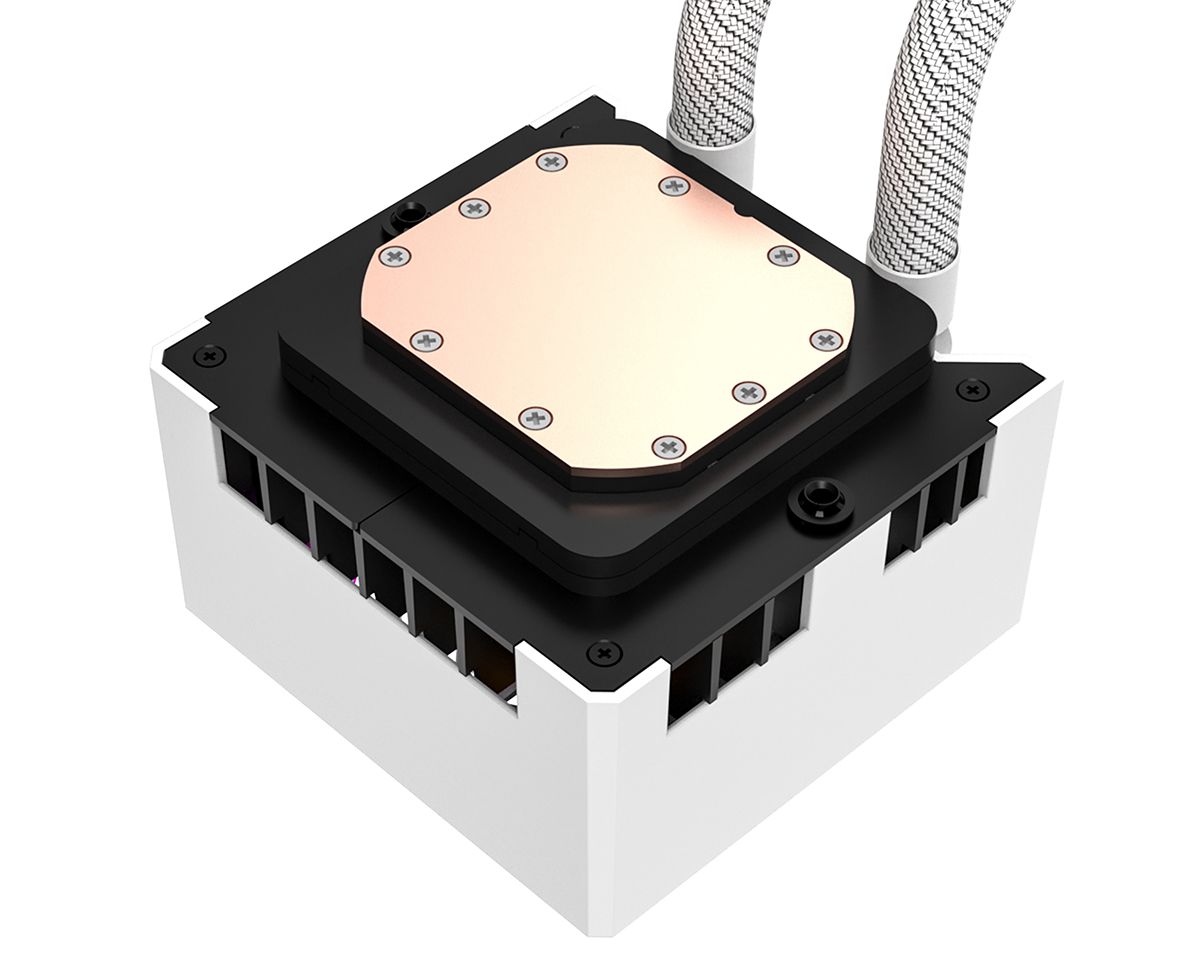

Waterblock Dimension | 94x90x62mm | |
Cold Plate Material | Copper | |
Pump Current | 0.32A MAX. | |
Pump Speed | 0~2500RPM | |
Pump Bearing | Ceramic Bearing | |
Pump Life Expectancy | 50,000 Hrs | |
Pump Noise Level | ≤25dB(A) | |
Rated Voltage | 12VDC | |
Operating Voltage | 10.8~13.2VDC | |
Started Voltage | 7VDC | |
Power Input | 3W | |
Connector | 4Pin PWM | |

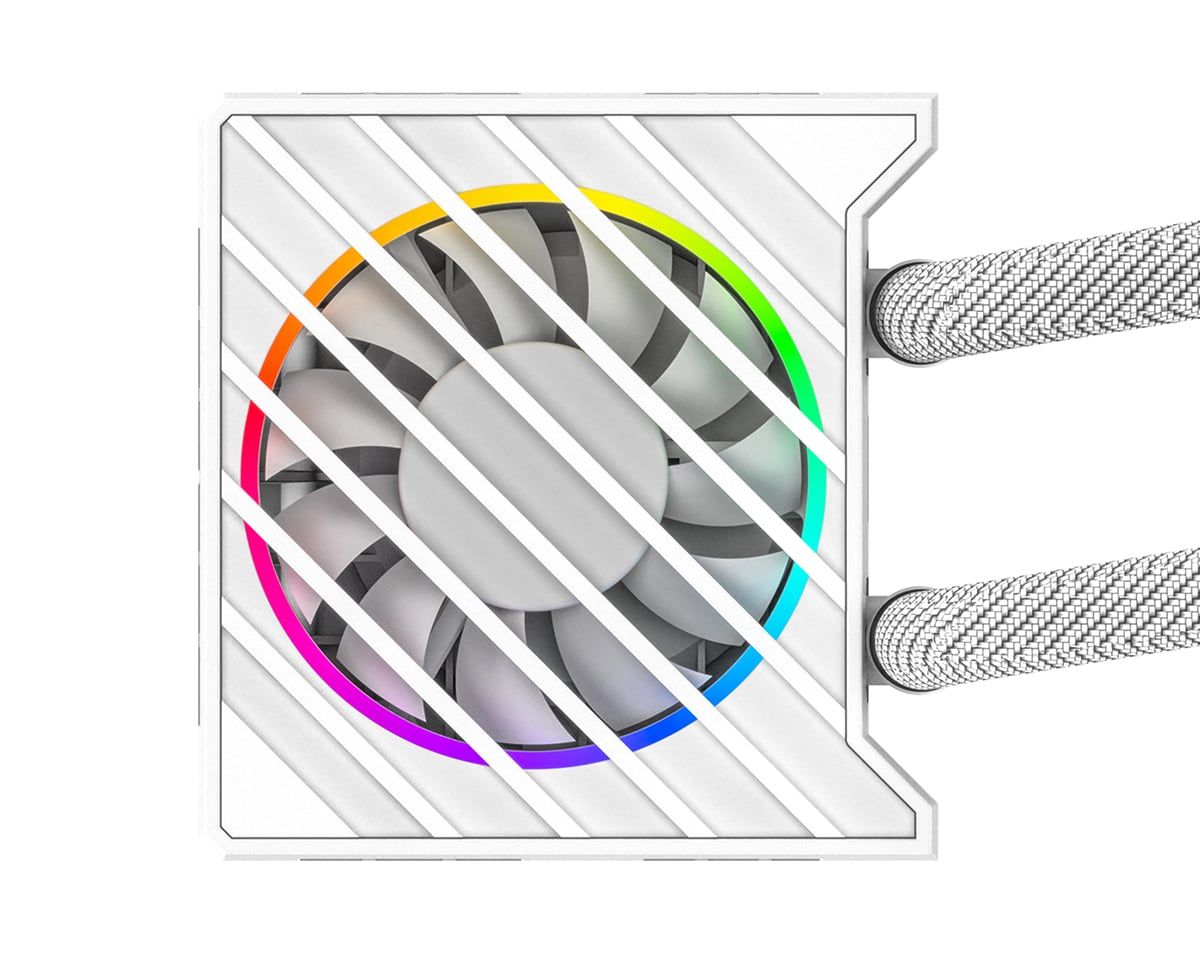

Fan on Radiator | Fan on Pump | |
Fan Dimension | 120×120×25mm | 70×70×15mm |
Fan Speed | 500±200~2000±10%RPM | 800~2800±10%RPM |
Max. Static Pressure | 2.68mmH2O | 1.92mmH2O |
Max. Air Flow | 78.25CFM | 23.0CFM |
Noise Level | 29.85dB(A) Max. | 28.0dB(A) Max. |
Current Input | 0.25A | 0.08A |
LED Lighting | N/A | 5V ARGB |
Bearing | Fluid Dynamic Bearing | Ball Bearing |
