Compatibility | Intel LGA2066/2011/1700/1200/115X | |
AMD AM5/AM4 | ||
TDP | 280W | |
Overall Dimension | 122x141x156mm | |

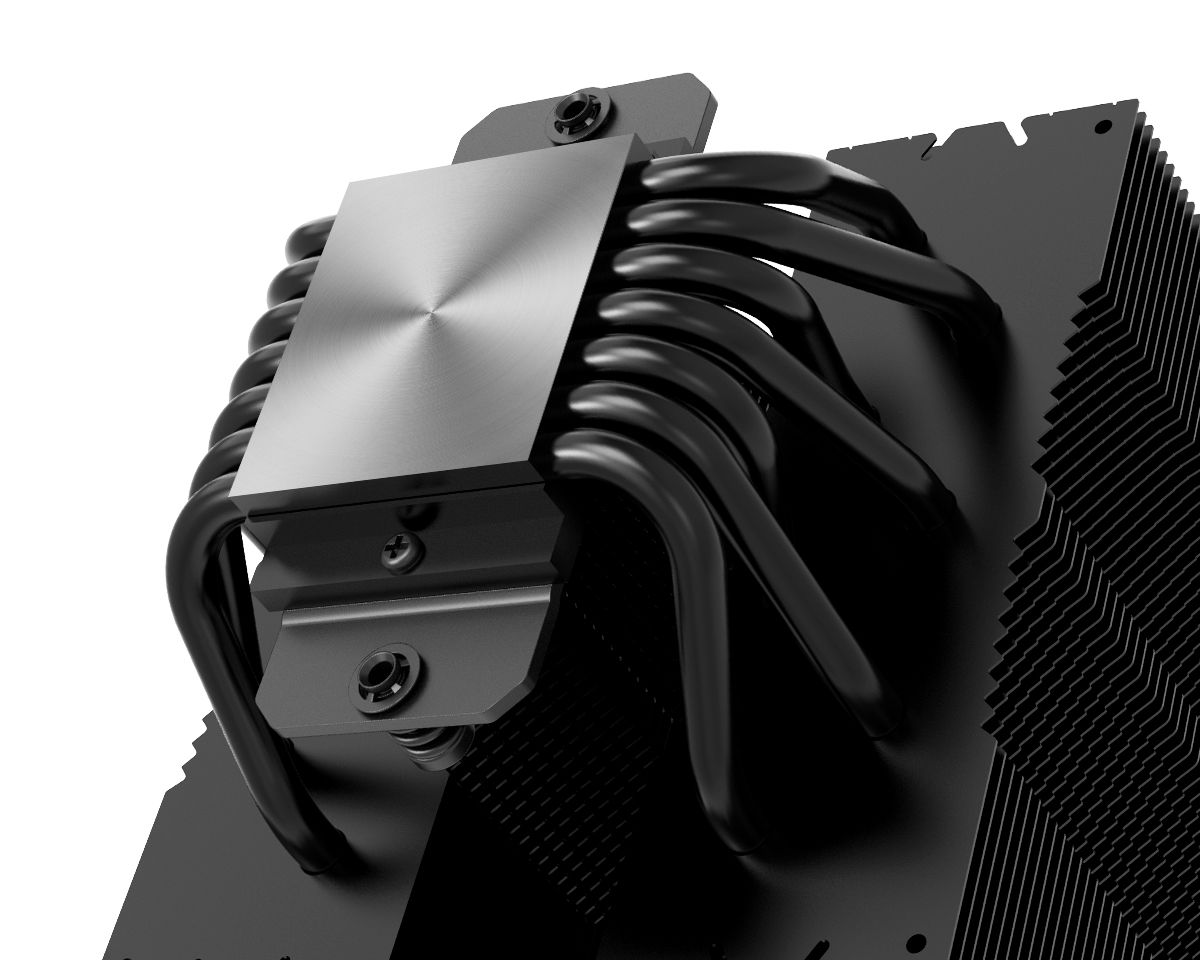

Heatsink Material | 7×Ф6mm Copper Heatpipe+Copper Base+Aluminum Fin | |
Weight | 1200g(Net weight includes the heatsink and fans only) | |
Fan 1 | Fan 2 | |
Fan Dimension | 120×120×25mm | 120×120×25mm |
Fan Speed | 500-1500RPM(PWM) | 500-1500RPM(PWM) |
Max. Air Flow | 68.2CFM | 68.2CFM |
Max. Static Pressure | 2.16mmH2O | 2.16mmH2O |
Noise | 30.5dB(A) Max. | 30.5dB(A) Max. |
Rated Voltage | 12VDC | 12VDC |
Operating Voltage | 10.8~13.2VDC | 10.8~13.2VDC |
Started Voltage | 7VDC | 7VDC |
Rated Current | 0.25A | 0.25A |
Power Input | 3W | 3W |
Bearing Type | Hydraulic Bearing | Hydraulic Bearing |
Connector | 4Pin PWM | 4Pin PWM |
