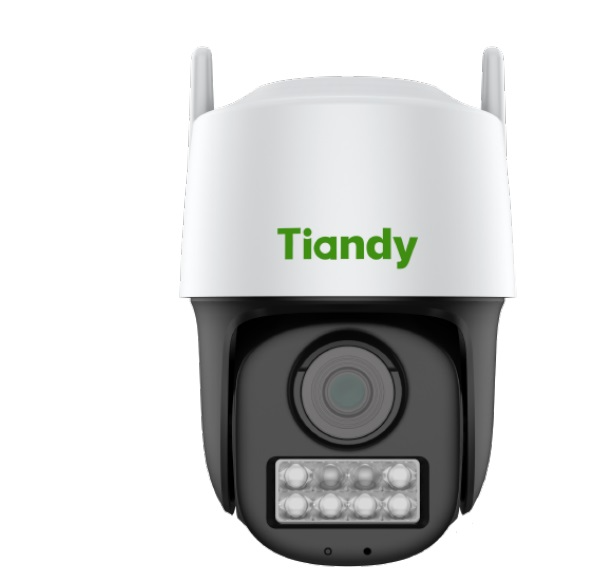

Camera IP PT Wifi hồng ngoại 3.0 Megapixel TIANDY TC-H333N (I5W/C/WIFI/Eu/4mm/V4.2)
- Cảm biến hình ảnh: 1/2.9 inch CMOS.
- Độ phân giải: 3.0 Megapixel.
- Chuẩn nén hình ảnh: S+265/H.265/H.264B/H.264M/H.264H.
- Ống kính cố định: 4mm.
- Độ nhạy sáng: Color: 0.02Lux@(F1.6, AGC ON), B/W:0Lux with IR.
- Tầm quan sát hồng ngoại: 50 mét.
- Tích hợp micro và loa trên camera.
- Hỗ trợ Micro SD card slot, up to 512GB.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
Camera | |
Image Sensor | 1/2.9 inch CMOS |
Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
Shutter Time | 1s-1/100000s |
Day&Night | IR-cut filter with auto switch (ICR) |
WDR | DWDR |
S/N | >38dB |
Angle Adjustment | pan 0-294°; tilt 0-90° |
Lens | |
Lens Type | Fixed |
Focal Length | 4mm |
Lens Mount | M12 |
Aperture Range | F1.6,Fixed |
Field of View | 81.6°(H);43.1°(V);94.2°(D) |
DORI Distance | Detect:57.14m Observe:22.68m Recognize:11.43m Identify:5.71m |
Illuminator | |
IR LEDs | 6 |
IR Distance | 50m |
Wavelength | 850nm |
White LEDs | 6 |
Whitelight Distance | 15m |
Compression Standard | |
Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
Video Bit Rate | 32k-4M |
Audio Compression | G.711A/G.711U |
Audio Sampling Rate | 8kHz/16kHz |
Image | |
Max. Resolution | 2304x1296@20fps |
Main Stream | PAL: 20fps(2304x1296,1920x1080,1280x720,704x576,640x480) NTSC: 20fps(2304x129,1920x1080,1280x720,704x480,640x480) |
Sub Stream | PAL: 20fps(704x576,704x288,352x288,640x360) NTSC: 20fps(704x480,704x240,352x240,640x360) |
BLC | Yes |
HLC | Yes |
AGC | Yes |
3D DNR | Yes |
White Balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
OSD | 1region;16*16/32*32 |
Privacy Mask | 4 regions |
Defog | Yes |
Feature | |
Alarm Trigger | Disk Full;Disk R/W Error;IP Address Conflict |
Linkage Method | trigger sound;trigger warmlight;trigger recording;trigger capture;notify surveillance center |
Early Warning(EW) | Yes |
Auto-Tracking | Auto-Tracking |
Network | |
ANR | ANR |
Protocols | HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;SSH;Unicast;RTSP;FTP |
System Compatibility | Onvif Profile S/T/G;CGI;MIL STONE |
Remote Connection | ≤2 |
Client | Easy7 Smart Client |
Moblie Client | EasyLive Plus |
Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
WIFI | |
Transmission distance | Up tp 30m(The performance varies based on actual environment) |
Wireless standard | IEEE802.11b/ 802.11g/802.11n |
Frequency range | 2.4 GHz ~ 2.4835 GHz |
Interface | |
Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
Built-In Mic | Yes |
Built-In Speaker | Yes |
Reset Button | |
On-board storage | Built-in Micro SD card slot, up to 512 GB |
General | |
Web Client Language | 3languages Simple Chinese/English/Vietnamese |
Operating Temperature | -30℃~60℃ |
Operating Humidity | 0-95% |
Storage Temperature | -30℃~60℃ |
Storage Humidity | 0-95%(non-condensing) |
Power Supply | DC12V±25%,MAX 12W |
Protection | Surge protection 2000V;Lightning proof 6000V;IP66 |
Boundary Dimensions (L x W x H) | 138 x 112 x 173 mm |
Weight | 0.47kg |
