* THÔNG SỐ KỸ THUẬT
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 |
| Coverage | Large homes |
| Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 802.11n : up to 300 Mbps 802.11ac : up to 867 Mbps 802.11ax (2.4GHz) : up to 574 Mbps 802.11ax (5GHz) : up to 1201 Mbps |
| Antenna | External antenna x 2 |
| Transmit/Receive | 2.4 GHz 2 x 2 5 GHz 2 x 2 |
| Memory | 256 MB Flash 512 MB RAM |
| Processor | 1.5GHz quad-core processor |
| Wi-Fi Technology | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection Access control：Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
| VPN Support | IPSec server PPTP server OpenVPN server PPTP client L2TP client OpenVPN client |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
| Utilities | Router setup wizard; Firmware restoration; Device discovery; printer setup utility |

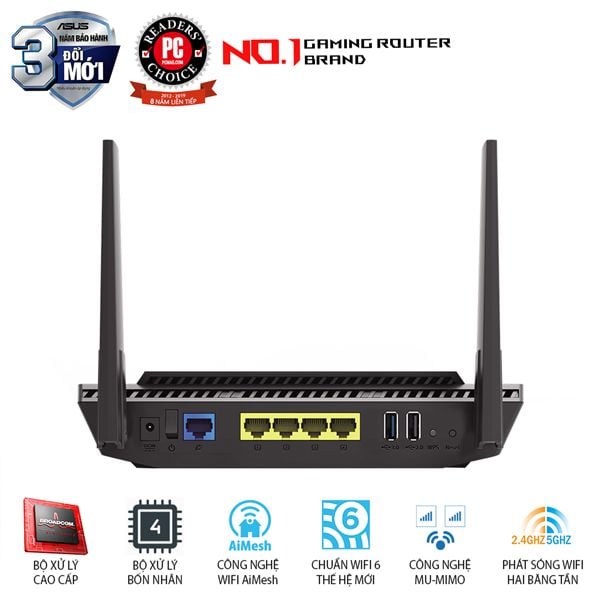

| Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 USB 2.0 x 1 USB 3.1 Gen 1 x 1 |
| Features | Router app MU-MIMO Smart Connect Traffic Analyzer Adaptive QoS AiProtection Pro Parental Control Guest Network : VPN server : PPTP Server, OpenVPN Server, IPSec server VPN client : PPTP client, L2TP client, OpenVPN client AiCloud personal cloud service 3G/4G data sharing Printer Server - Multifunctional printer support (Windows only) - LPR protocol support Download Master - Support bt, nzb, http, ed2k - Support encryption, DHT, PEX and magnet link - Upload and download bandwidth control - Download scheduling AiDisk file server - Samba and FTP server with account management Dual WAN IPTV support |
| Button | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 LAN x 4 WAN x 1 Wi-Fi x 2 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 2 A current |
| OS Support | Windows® 10 Windows® 8 Windows® 7 Mac OS X 10.6 or Above iOS 9.0 or higher AndroidTM |
| Dimensions | 223.5 x 129.3 x 47.5 mm (WxDxH) |
| Weight | 456 g |
| Color | Black |
| Router Special Features | AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control |
| Operation mode | Wireless router mode Range extender mode Access point mode Media bridge mode |
