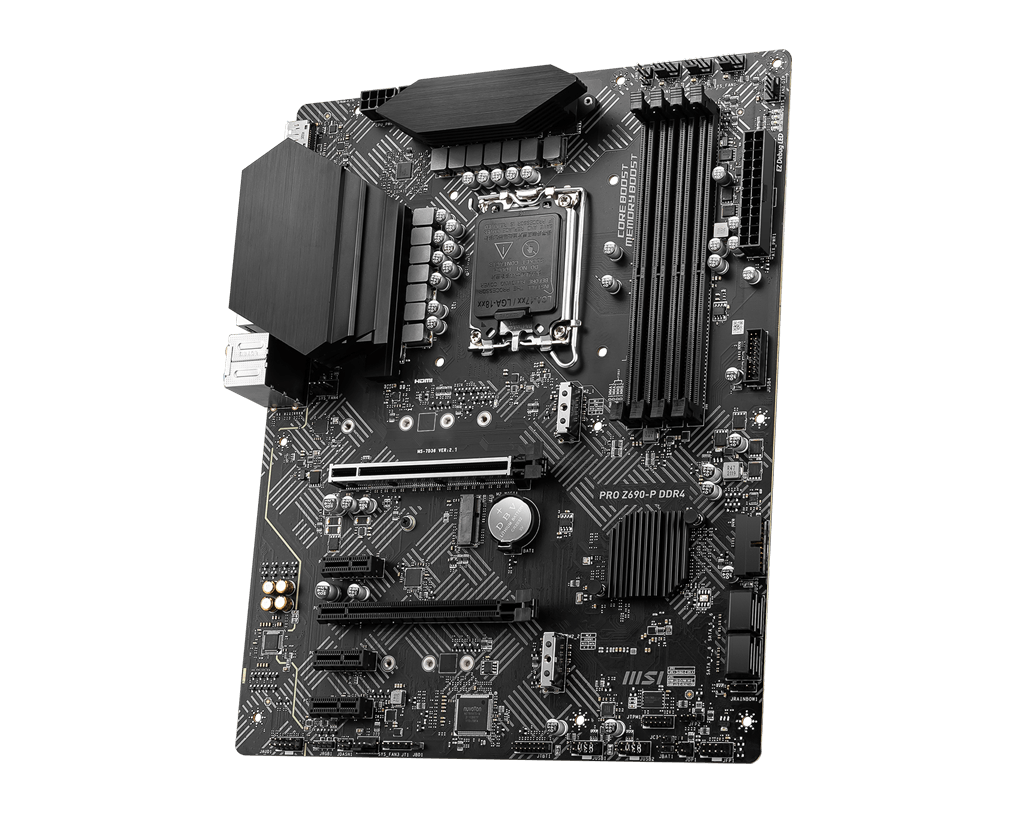

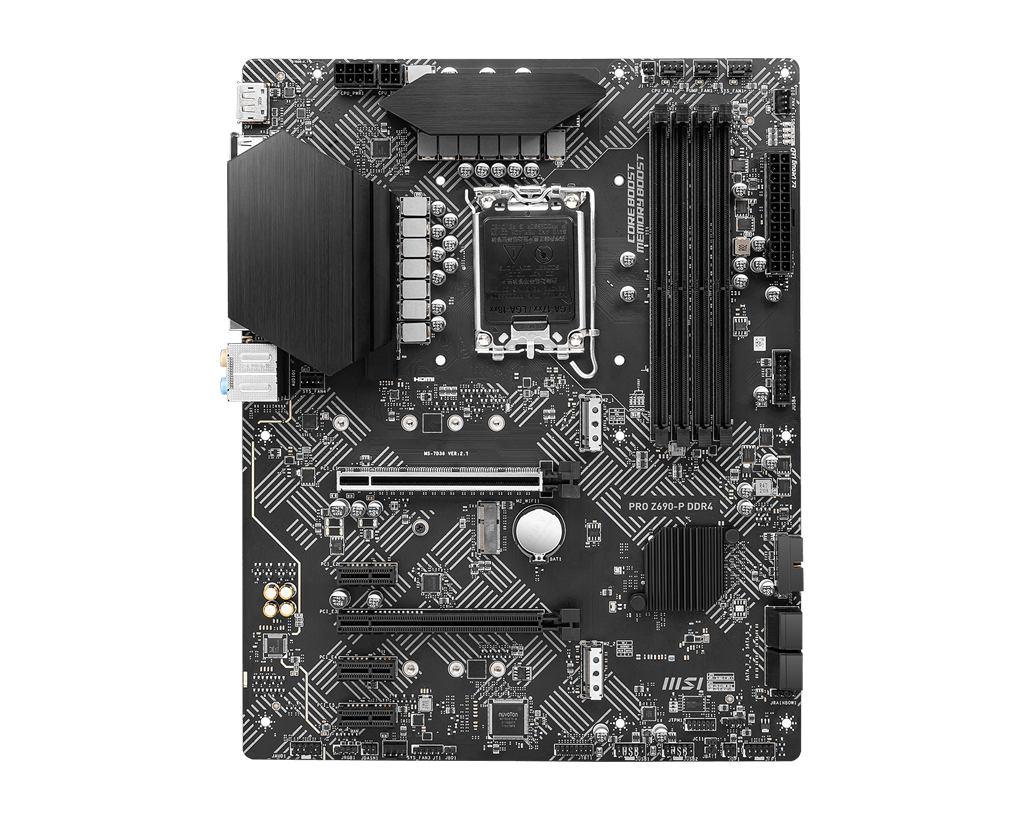

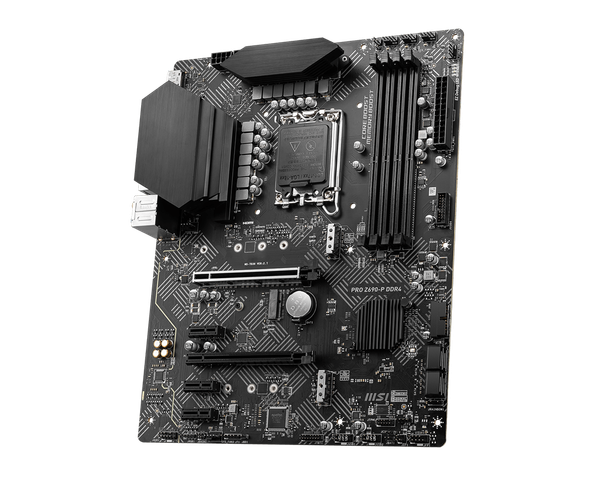

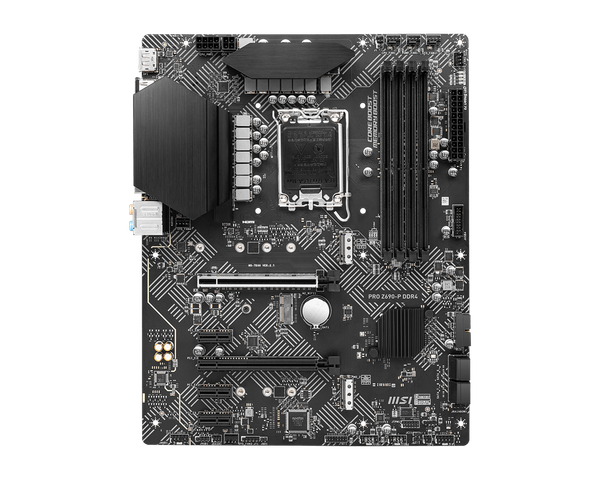

| PROCESSOR | - Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
- Processor socket LGA1700
- Please go to msi.com to get the newest support status as new processors are released.
|
| CHIPSET | Intel® Z690 Chipset |
| MEMORY | - 4x DDR4 memory slots, support up to 128GB 1
- Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5000+ MHz
- 1DPC 2R Max speed up to 4600+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer www.msi.com for more information on compatible memory
|
| EXPANSION SLOT | - 2x PCIe x16 slots
- PCI_E1 slot (From CPU)
- PCI_E3 (From Z690 chipset)
- 3x PCIe 3.0 x1 slots (Fom Z690 chipset)
- 1x M.2 slot with E key for Intel® Wireless-AX CNVi and PCIe WiFi module
-
|
| ONBOARD GRAPHICS | - 1x HDMI 1.4b with HDR port, supports a maximum resolution of 4K 30Hz12
- 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
|
| MULTI-GPU | - Supports AMD® CrossFire™ Technology
|
| STORAGE | - 4x SATA 6Gb/s ports (From Z690 chipset)
- 2x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Supports PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (From Z690 chipset)
- Supports PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel® Optane™ Memory
|
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
|
| USB | - Intel® Z690 Chipset
- 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors)
- 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors)
- 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
|
| AUDIO | Realtek® ALC897 Codec - 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| LAN | - 1x Realtek® RTL8125BG 2.5Gbps LAN controller
|
| INTERNAL CONNECTORS | - 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 4x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Clear CMOS jumper
- 1x TBT connector (Supports RTD3)\
|
| LED FEATURE | - 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 4x EZ Debug LED
|

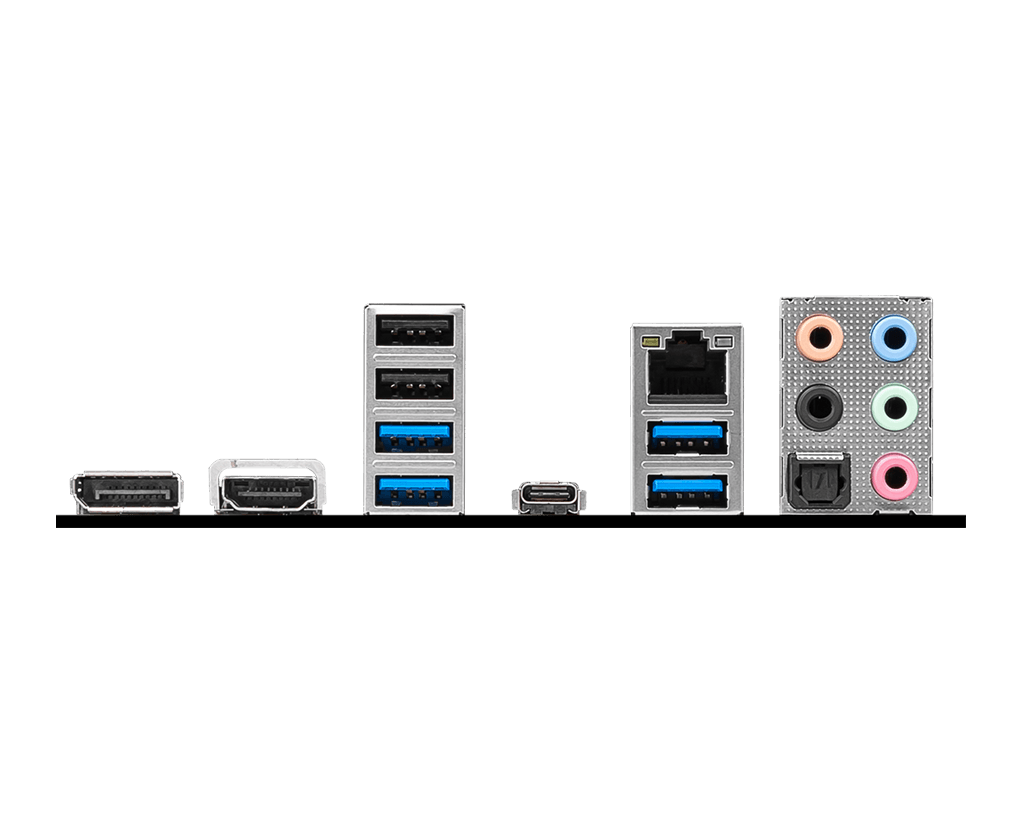

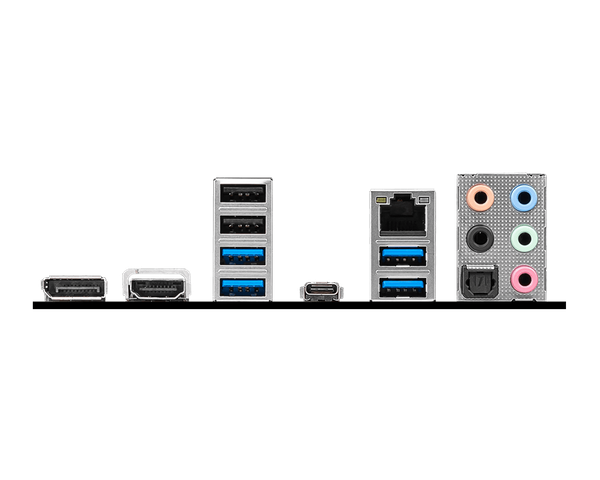

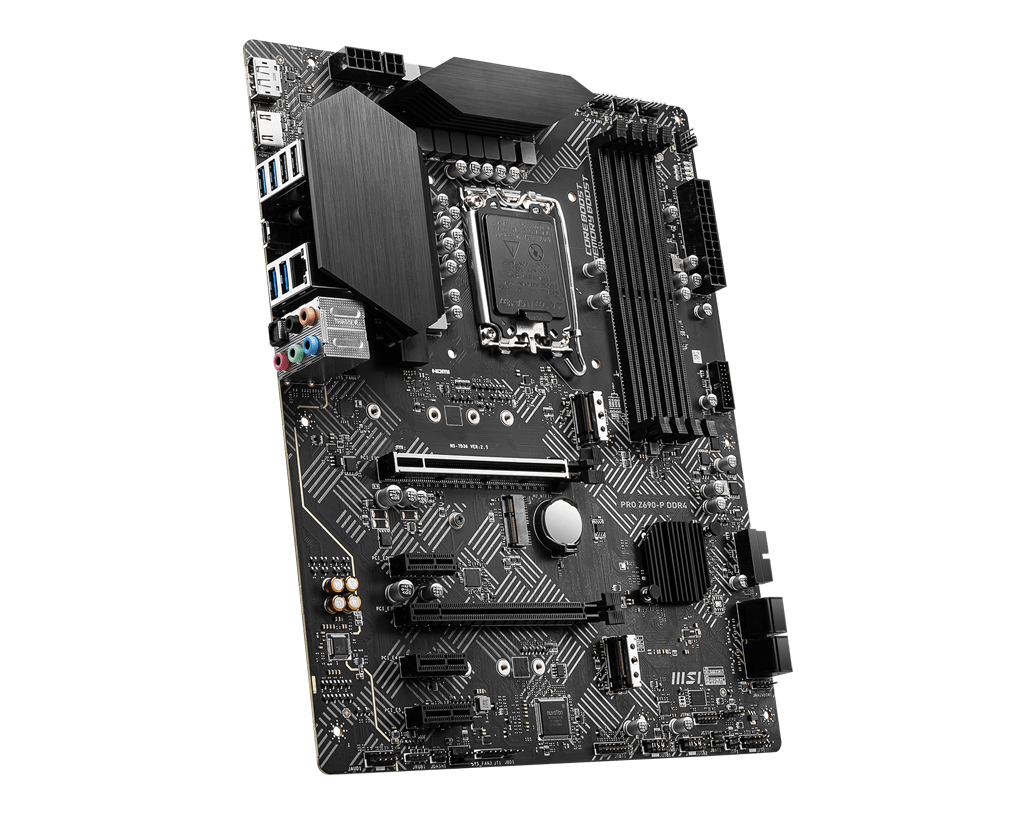

| BACK PANEL PORTS | - DisplayPort
- HDMI
- USB 2.0
- LAN port
- Audio Connectors
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2×2 20Gbps Type-C
- USB 3.2 Gen 1 5Gbps Type-A
- Optical S/PDIF Out
|
| DIMENSIONS | - ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
|
